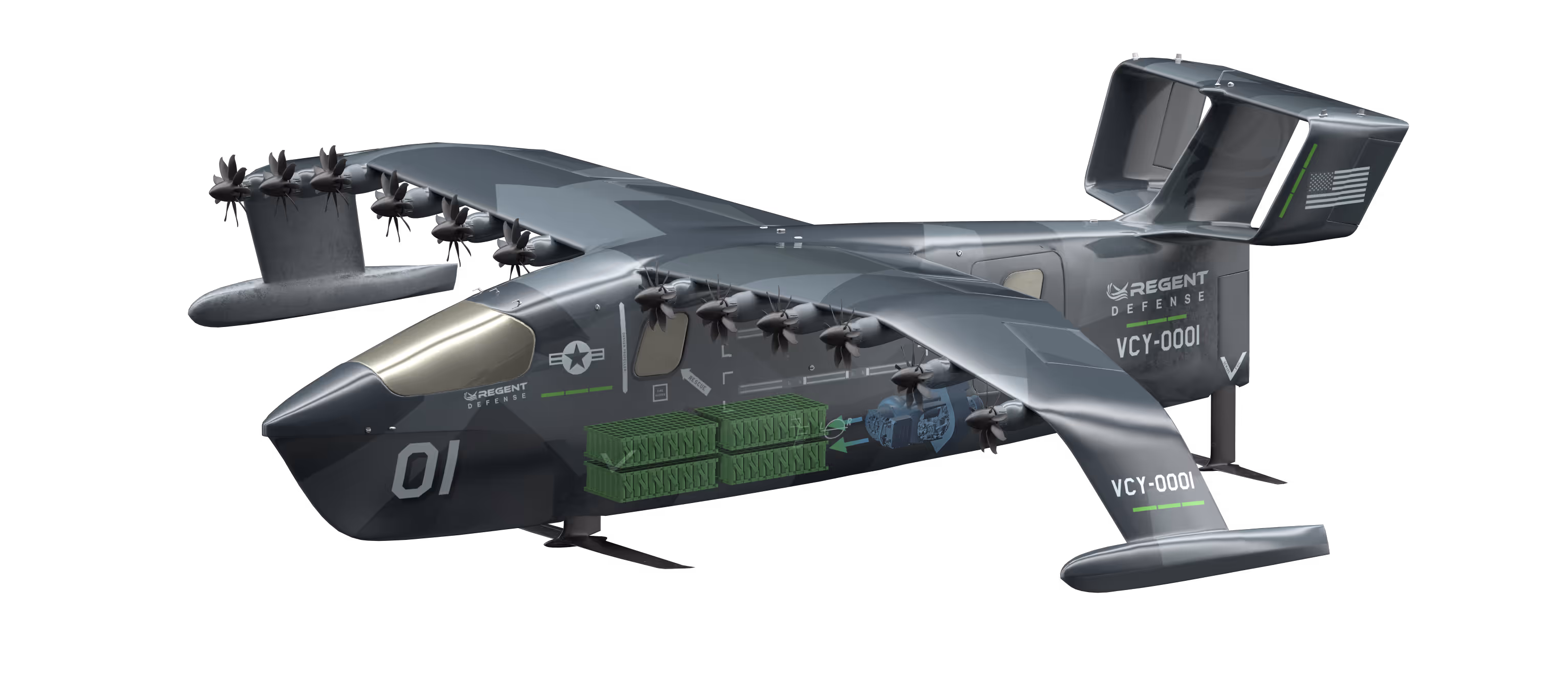

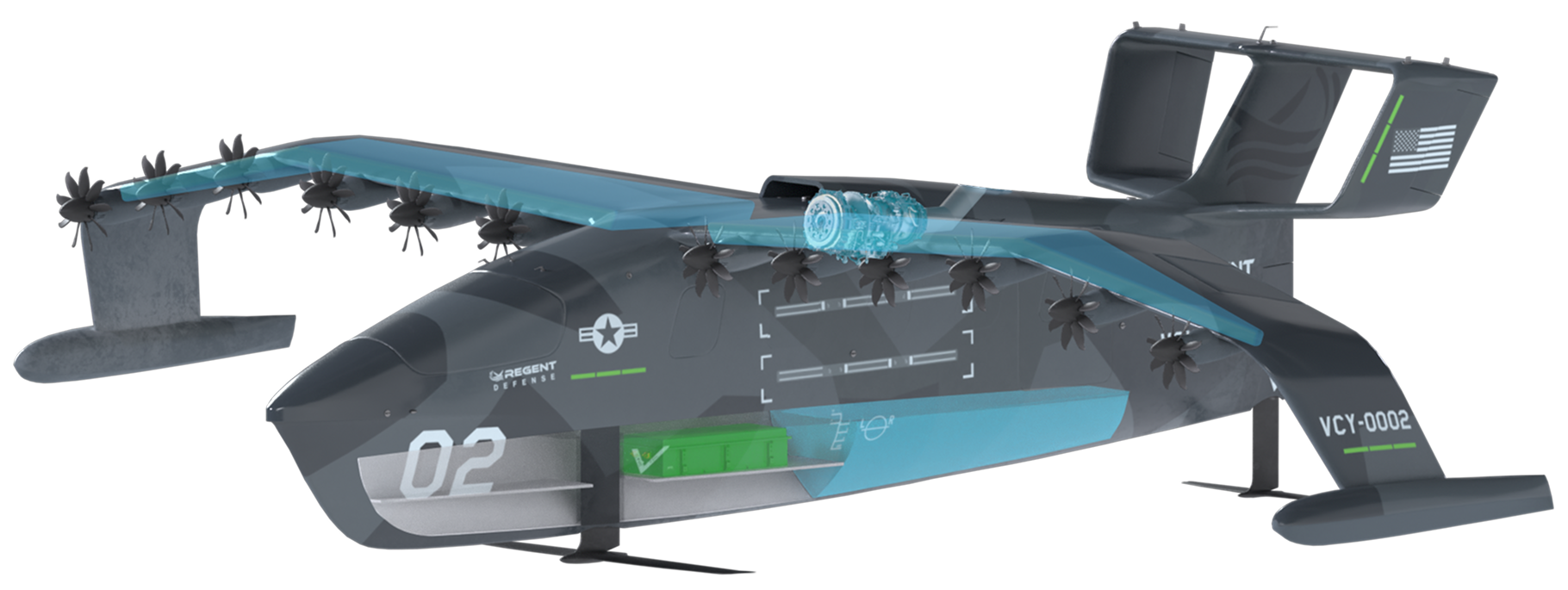

render of crewed viceroy with a transparent render showing where the batteries and engine are
3,500 lbs
Payload
1,400 NM
range
160 kts
speed
5ft sea state
takeoff and landing
13 ft sea state
over flight

detailed specifications

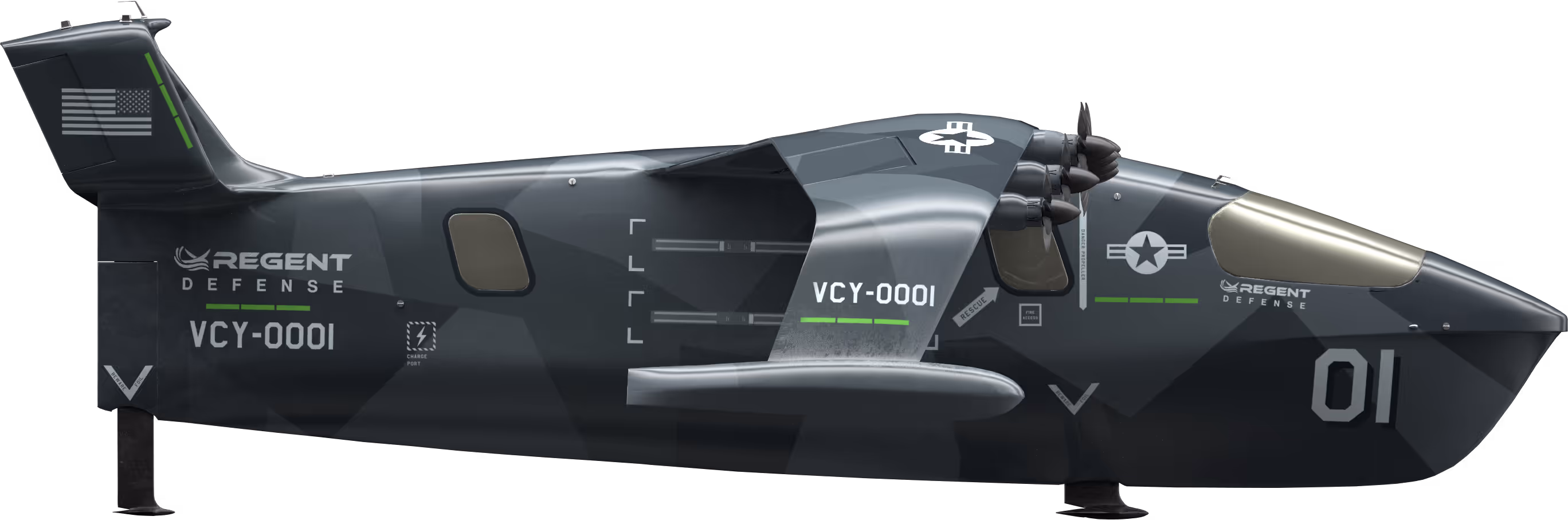

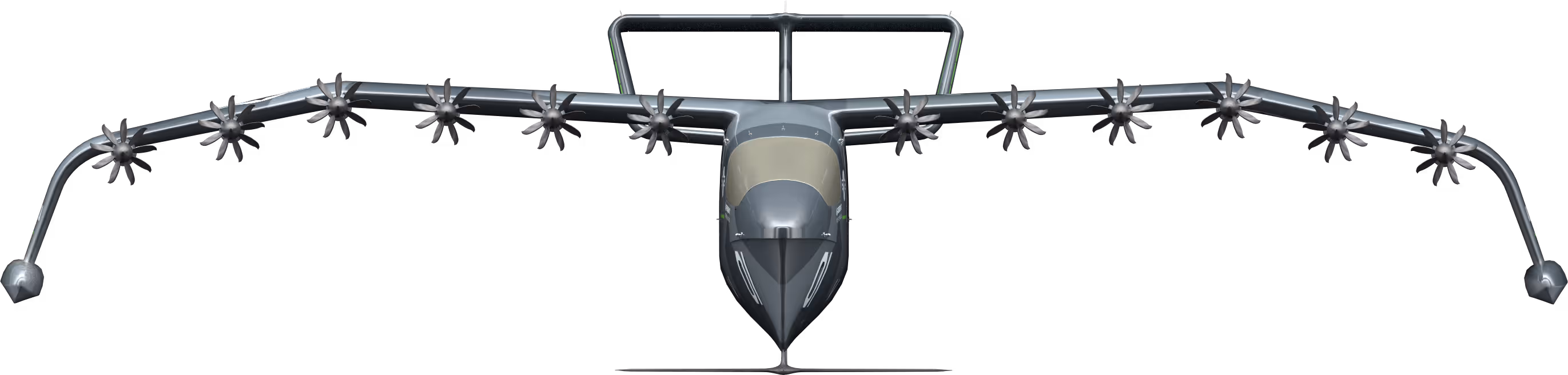

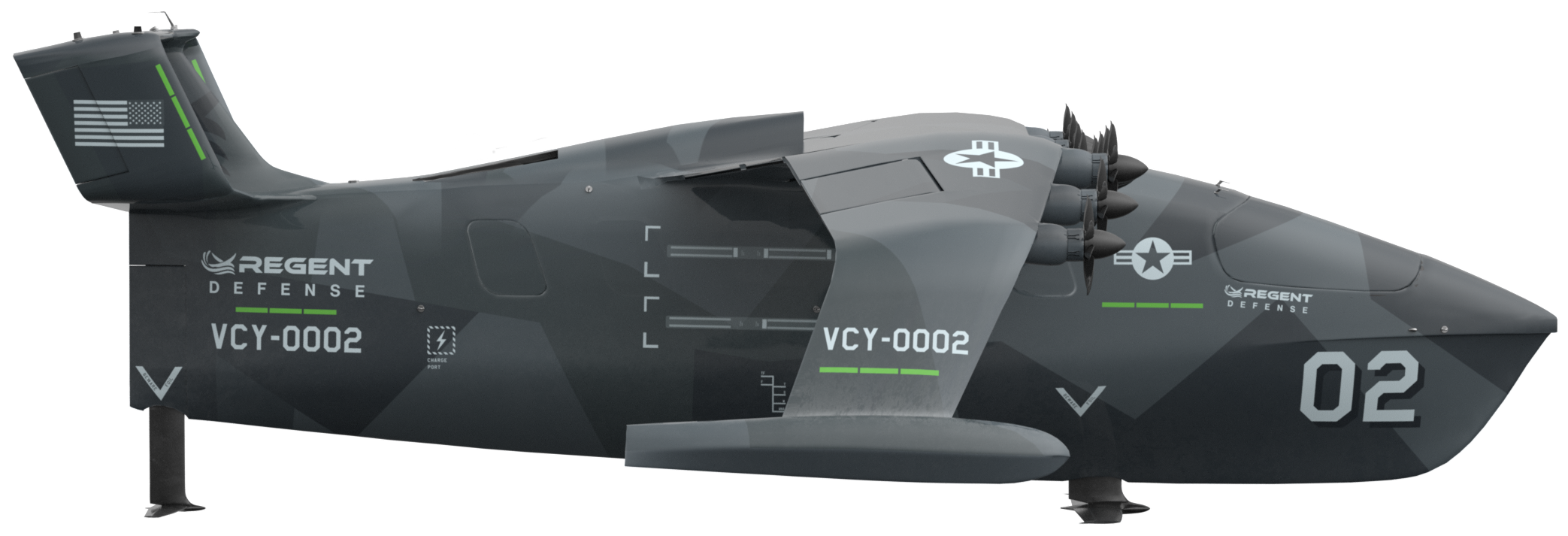

crewed viceroy front view rendercrewed viceroy side render
external dimension
Length
55 ft.
Height
18 ft.
Wing Span
65 ft.

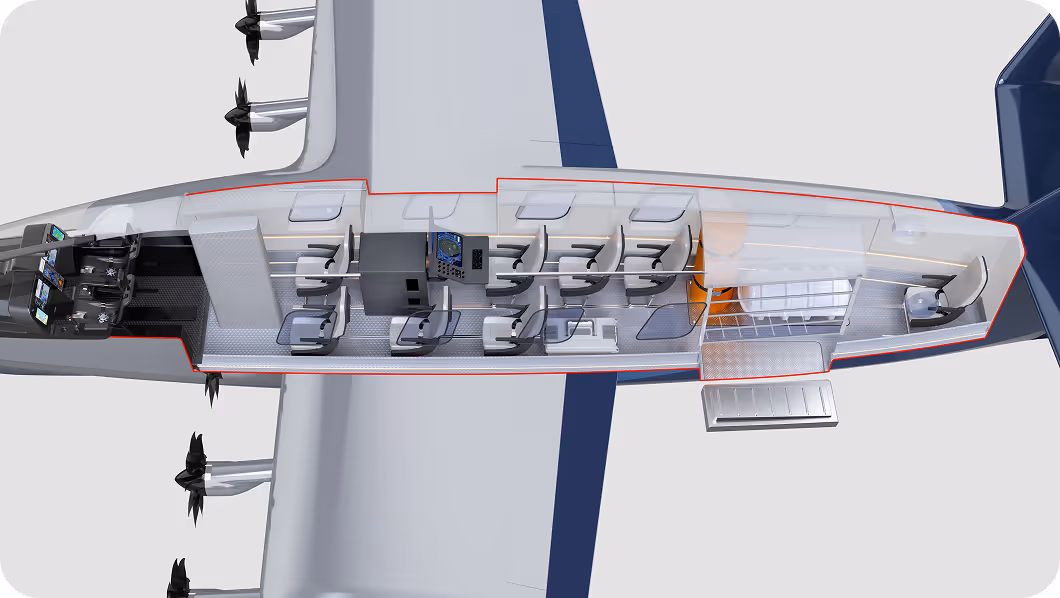

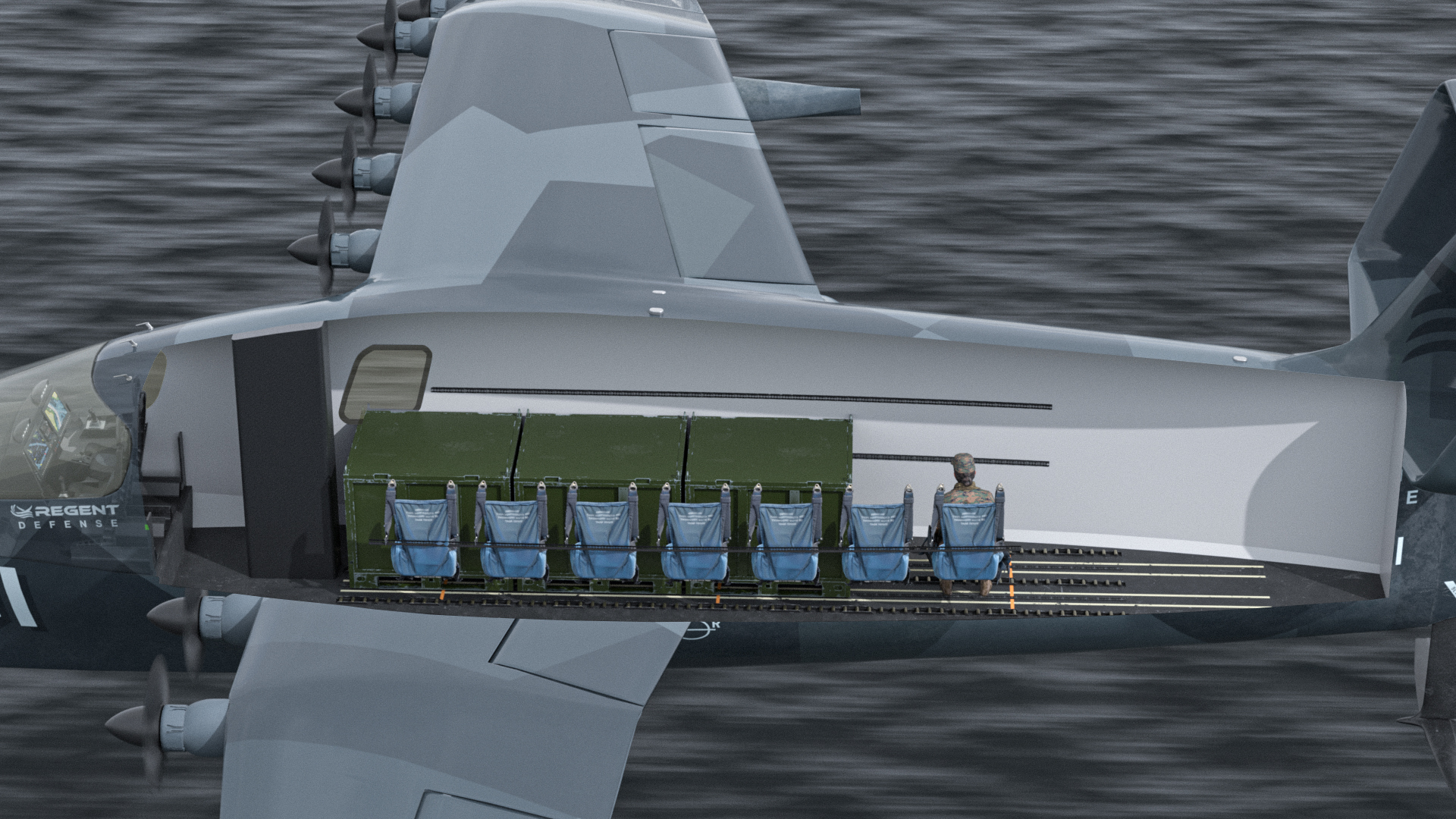

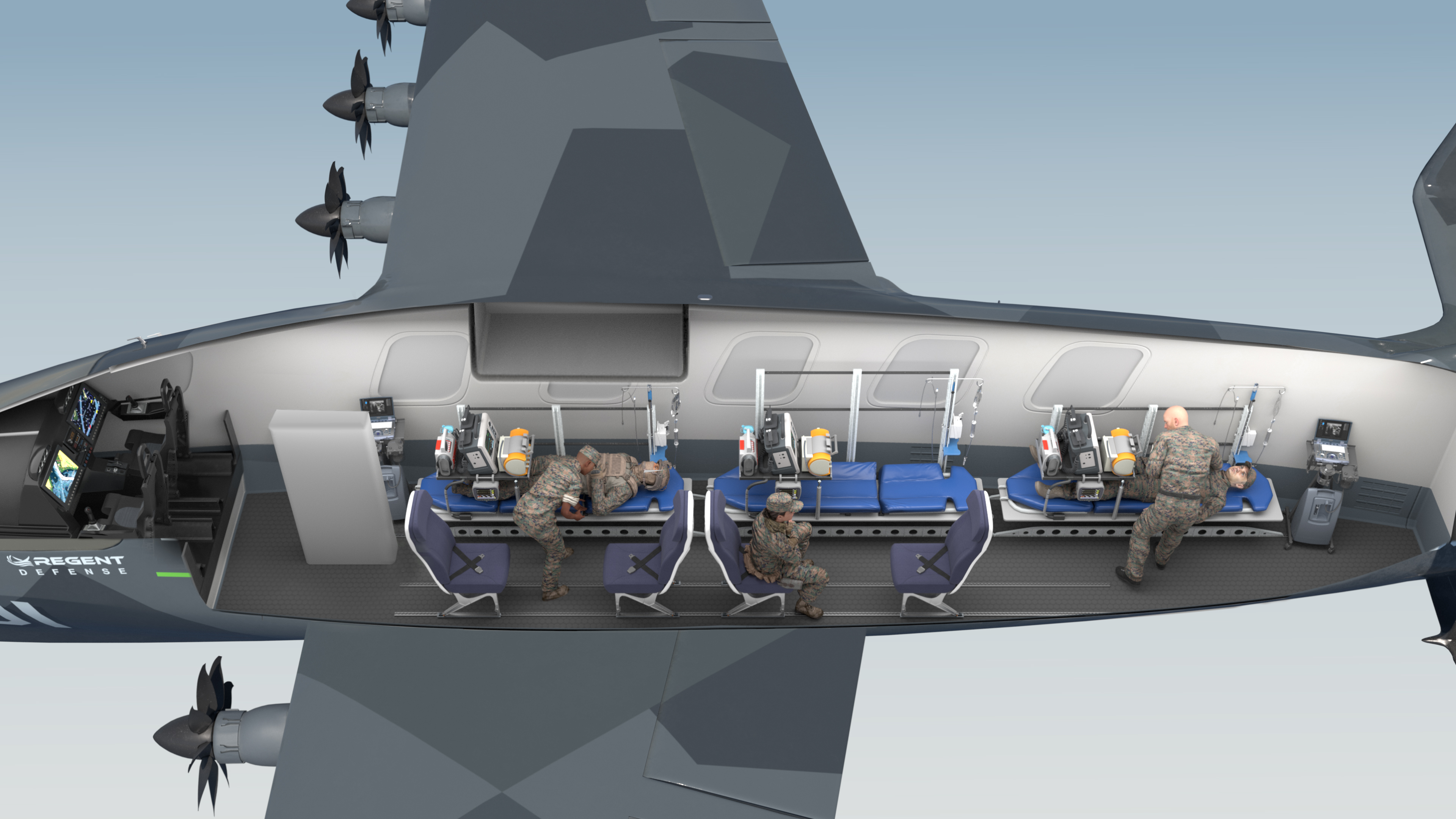

Cabin dimensions
Length
26 ft.
Height
6 ft.
Width
5.5 ft.
Cargo Door
4.75 ft. x 5.4 ft.
cabin volume
12 Pax Configuration
Passenger Cabin
746 cu ft.
Luggage Area
88 cu ft.
cabin volume
12 Pax Configuration
Passenger Cabin
834 cu ft.
Luggage Area
88 cu ft.
Payload
Useful Load Passenger Configuration
3,500 lbs.
Useful Load Cargo Configuration
3,500 lbs.
Performance
Speed
160 knots
Range
1,400 nm
